Brackets & mounting plates
Flat brackets and plates with fine cutouts, ready for bending or assembly.
Divine Precision
Get Instant Quote
Divine Precision

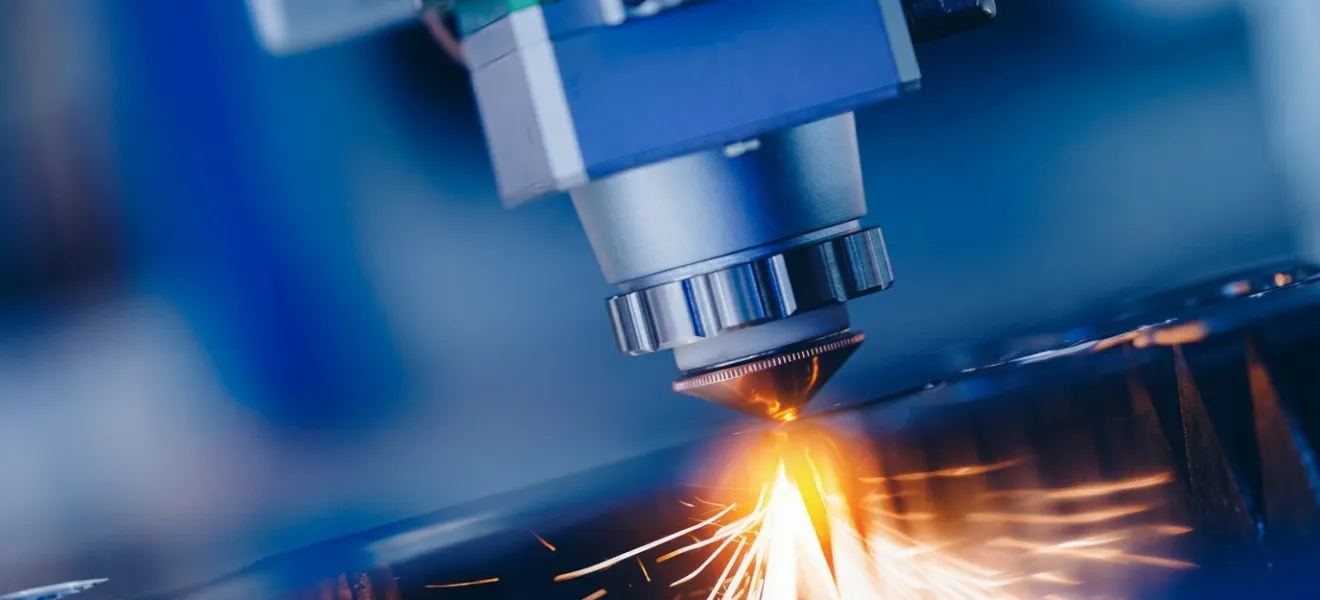

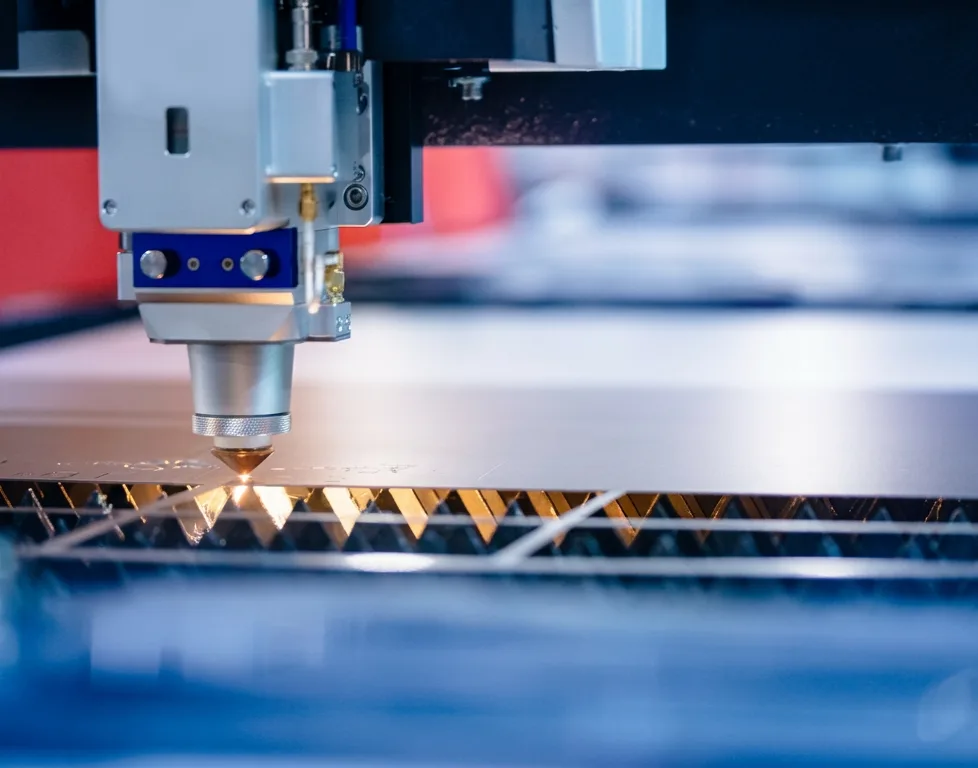

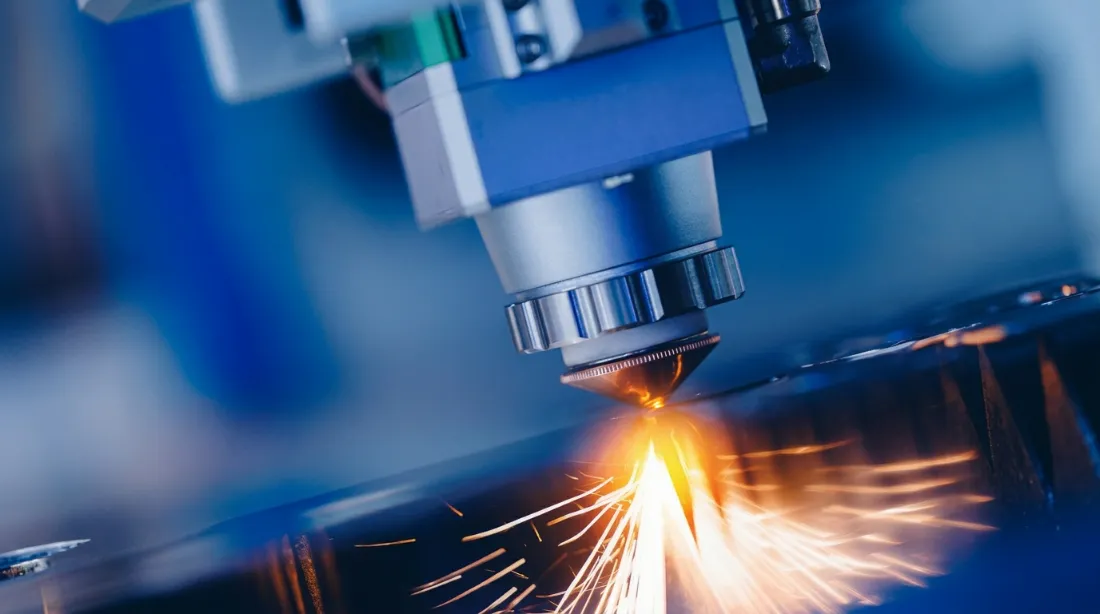

Fast, precise and clean cuts on a wide variety of sheet metals. Our fiber laser produces high-quality flat parts with excellent edge quality and minimal material distortion — from a single prototype to production.
Our Laser Cutting service delivers fast, precise and clean cuts on a wide variety of sheet metals. Using advanced fiber laser technology, we produce high-quality flat parts with excellent edge quality and minimal material distortion.
Laser cutting excels at flat sheet metal parts with complex contours, fine details, sharp corners and small features that are difficult to produce by punching or shearing. It suits rapid prototyping and quick design iterations as well as low-to-medium volume production — without investing in expensive tooling or dies.
We recommend fiber laser cutting for most metals due to its superior speed, precision and edge quality on mild steel, stainless steel and aluminum — for automotive, electronics, medical equipment, machinery and architectural applications.
When you need flat sheet metal parts with intricate designs, tight tolerances or fast delivery — the preferred choice for brackets, enclosures, panels, gaskets and decorative components where accuracy and edge quality are important.
Fiber laser technology, efficient nesting and an engineering team that advises the best laser parameters for your material, thickness and design.
Exceptional precision with tight tolerances, allowing intricate details, fine features and complex geometries that are difficult to achieve with traditional methods.
Clean, smooth edges with minimal burrs and very low heat distortion, often reducing or eliminating the need for secondary finishing operations.
Extremely fast cutting speeds enable rapid prototyping and shorter lead times — ideal for urgent projects and quick design iterations.
No need for custom tooling or dies, which significantly reduces setup costs for prototypes and small to medium production runs.
Effectively cuts a wide range of metals including mild steel, stainless steel, aluminum, copper and brass with excellent results.
Advanced nesting software optimizes material usage, while complex patterns, small holes and detailed cutouts are handled without extra production time.
Recommended thickness ranges for optimal quality, speed and cost. Maximum values depend on the specific alloy and design complexity — send the part and we will confirm.
| Mild steel | 0.5 – 12 mm recommended, up to 20 mm |
|---|---|
| Stainless steel | 0.5 – 8 mm recommended, up to 15 mm |
| Aluminum | 0.5 – 8 mm recommended, up to 12 mm |
| Copper / Brass | 0.5 – 6 mm recommended, up to 8 mm |
| Technology | Fiber laser, advanced nesting software |
| Edge quality | Clean edges, minimal burrs, low heat distortion |
| Typical parts | Brackets, enclosures, panels, gaskets, decorative parts |
| Minimum order | 1 piece |
|---|---|
| Prototype lead time | Rapid — quoted job by job |
| Production lead time | Quoted job by job, rush available |
| Typical batch size | 1 – 10,000+ pieces |
| File formats | DXF, DWG, STEP, IGES, PDF |
| Quotation | Within hours, with nesting and DFM notes |
| Shipping | EXW, FOB, DDP — air or sea |
We stock a range of alloys and plastics suited to a wide variety of part applications and industries. Special alloys arrive with mill certificates, and every lot ships with its material certificate on request.
Material certificates are checked against the drawing and the heat number is recorded at receiving, so every lot is traceable from raw stock to the box it ships in.

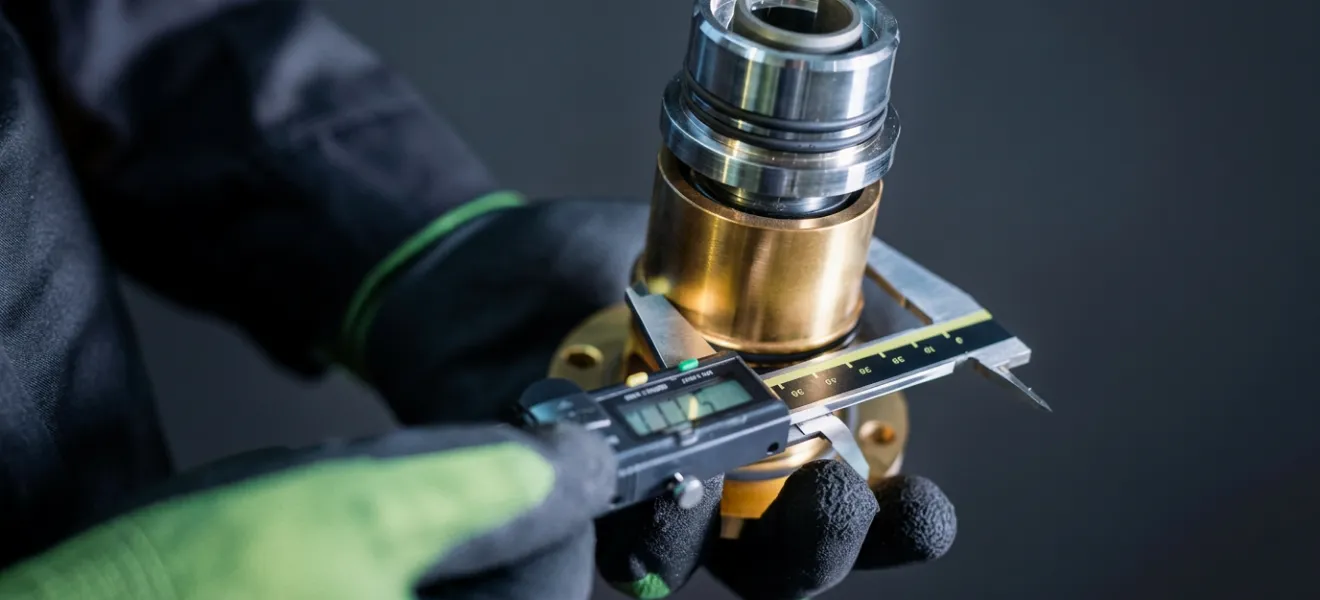

The first part off the machine is measured feature by feature against the drawing and released with a first article inspection report before production continues.
Operators sample parts throughout the run with statistical process control and AQL checks, so any drift is corrected at the machine — not discovered at the end.
Every part receives a final dimensional and visual inspection, is packed with VCI protection and ships with its inspection report and material certificates.
A sample of the flat part families we cut every week. Customer-specific work is never shown without written permission.
01

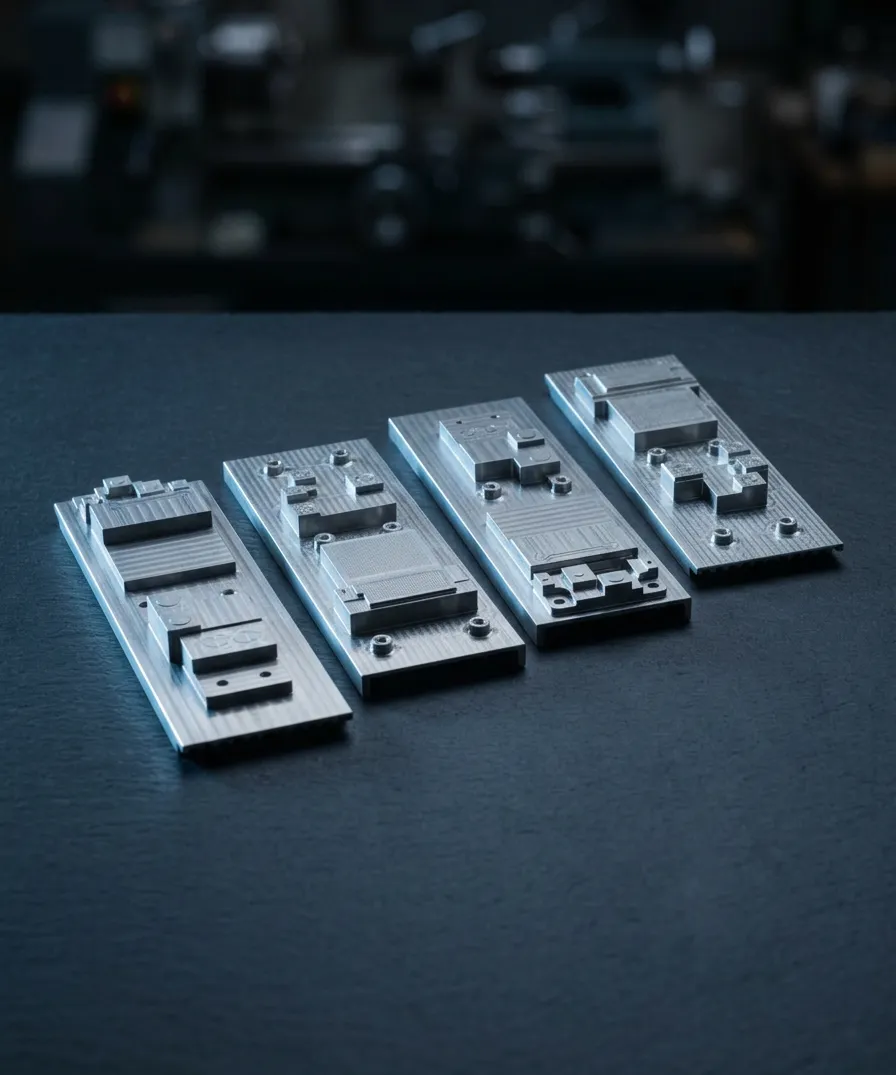

Flat brackets and plates with fine cutouts, ready for bending or assembly.
02

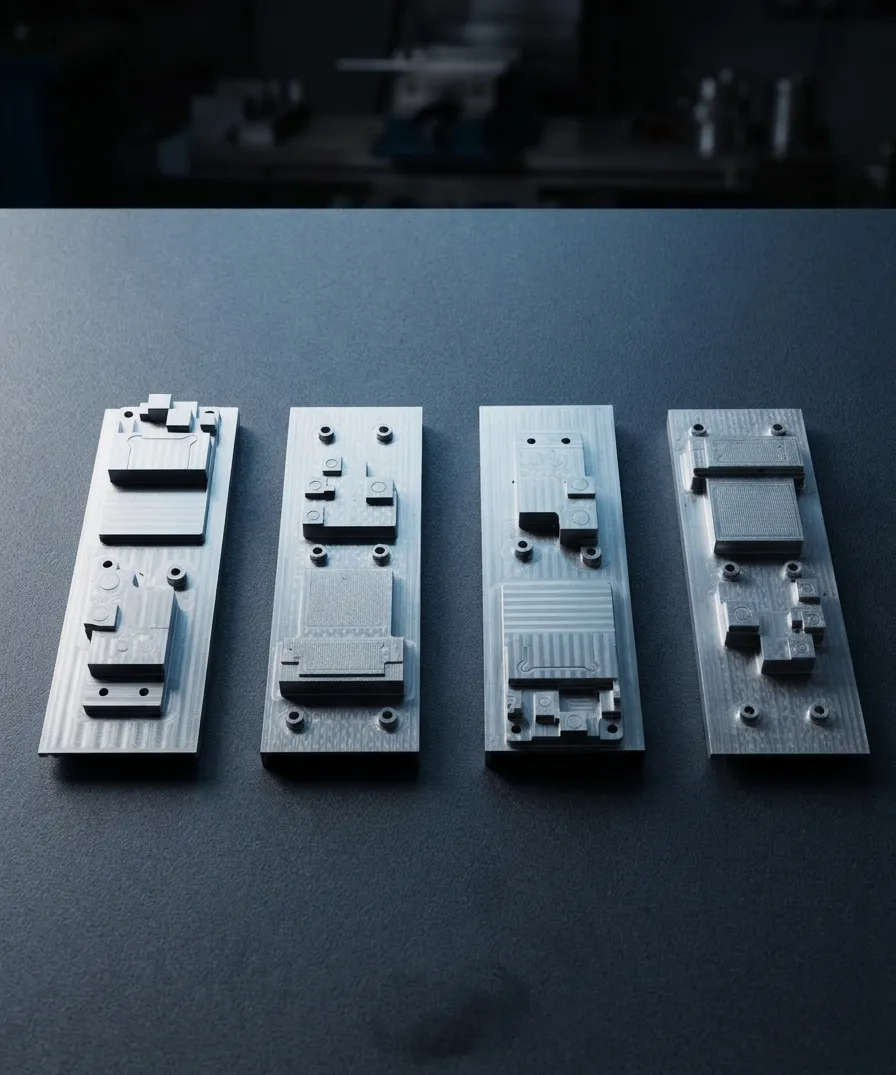

Enclosure panels and covers with clean, burr-free edges and accurate hole patterns.
03

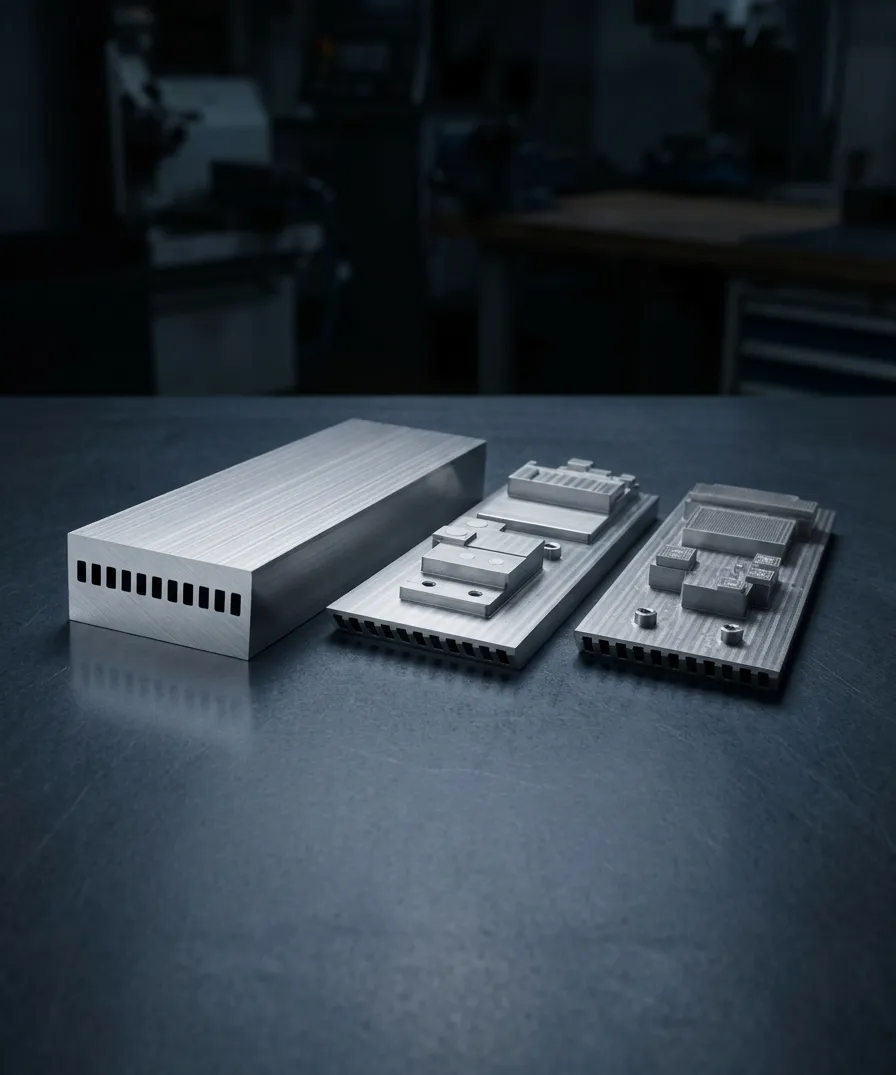

Structural plates for machinery and electronics with detailed cutouts and slots.
04

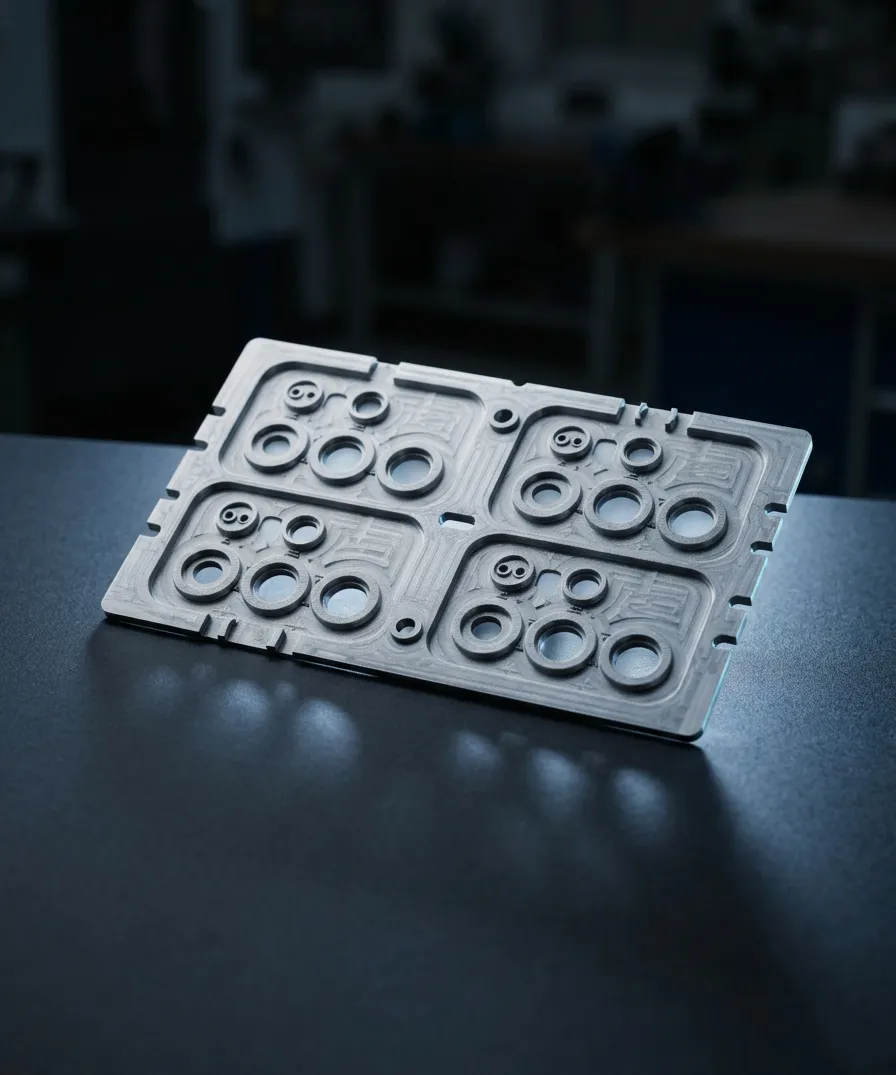

Thin rings, gaskets and shims cut with high repeatability and minimal distortion.
Still looking for something?
Our team answers within one business day.
Upload CAD drawings, 2D/3D files, or technical documents securely on our website — STEP, IGES, and standard 2D formats are all welcome. You'll receive a competitive quotation within hours.
Yes. Every file you send is reviewed only by our engineering team and never shared with third parties. We protect your IP fully and sign an NDA on request before any drawing is opened.
Our CNC and 5-axis machining holds tolerances down to ±0.005 mm with surface finishes to Ra 0.4 μm. Injection molding is held to ±0.02 mm and sheet metal fabrication to ±0.1 mm, with full inspection and traceability on every batch.
Absolutely. We deliver machined prototypes in as little as 3 days and scale the same process to production runs of 100,000+ pieces, so you can move from validation to volume without changing suppliers.
We machine aluminium alloys, steel, stainless steel, brass, titanium, engineering plastics and special alloys. For molding we run ABS, PC, Nylon, PP and PEEK, and our sheet metal shop works stainless steel, aluminium, galvanized steel and copper.
Yes. Divine Precision is certified to ISO 9001:2015 and IATF 16949, with strict process control and full traceability from raw material to finished part.
Send your CAD drawings, 2D/3D files, or technical documents securely. Our team reviews promptly, protects your IP fully — and signs an NDA on request.
